Brand Name :LONROY
Place of Origin :Guangdong, China
Model Number :XF-02
MOQ :1
Funnel hole diameter :2.5mm or 5.0mm
Funnel angle :60 degrees
Cup volume :25±0.05cm³
Cup internal diameter :31±1mm
Material :Non-magnetic corrosion-resistant metal (brass or stainless steel)
Funnel-cup distance :25mm
Weight accuracy :0.01g
Measuring range :Powder flow velocity and loose packing density
Standard compliance :GB1482-2010-T, ISO 3923/1-1979
Funnel specifications :2.5mm for flow velocity, 5.0mm for density
Surface finish :Carefully polished inner surface
Base requirement :Horizontal and firm, free from vibration
Component alignment :Funnel and cup must be concentric
Wall properties :Sufficient thickness and hardness to prevent deformation
Power type :Electronic
Contact Now
Hall Flowability Bulk Density Tester/Metal Powder Hall Flowability Meter / Powder Apparent Density Tester
ProductIntroduction
The XF-02 Hall flowmeter is manufactured according to gb1482-2010-T standard funnel method (Hall flowmeter replaces GB1479-84 and GB1482-84 standard specifications. It is used to test the flow velocity and loose packing density of metal powder and non-metal powder.
This method is only suitable for powder that can flow freely through a standard funnel with a diameter of 2.5mm or 5.0mm.The rest of this standard specifies a method for the determination of powder bulk density that cannot be determined through a standard funnel with an aperture of 5.0mm.
How it works:
Powder falls freely from funnel hole to fill cup.In the loose packing state, the loose density of powder is expressed by the mass of powder per unit volume.This standard is equivalent to ISO 3923/1 -- 1979, Determination of loose packing density of Metallic powders -- Part 1: Funnel method
.
Hall Flowability Bulk Density Tester/Metal Powder Hall Flowability Meter / Powder Apparent Density Tester

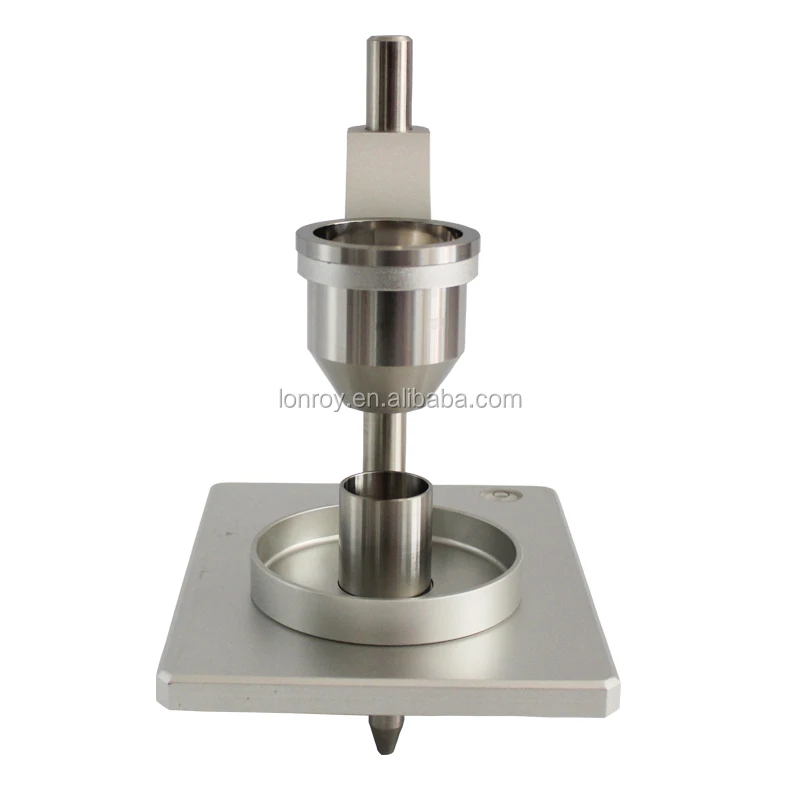

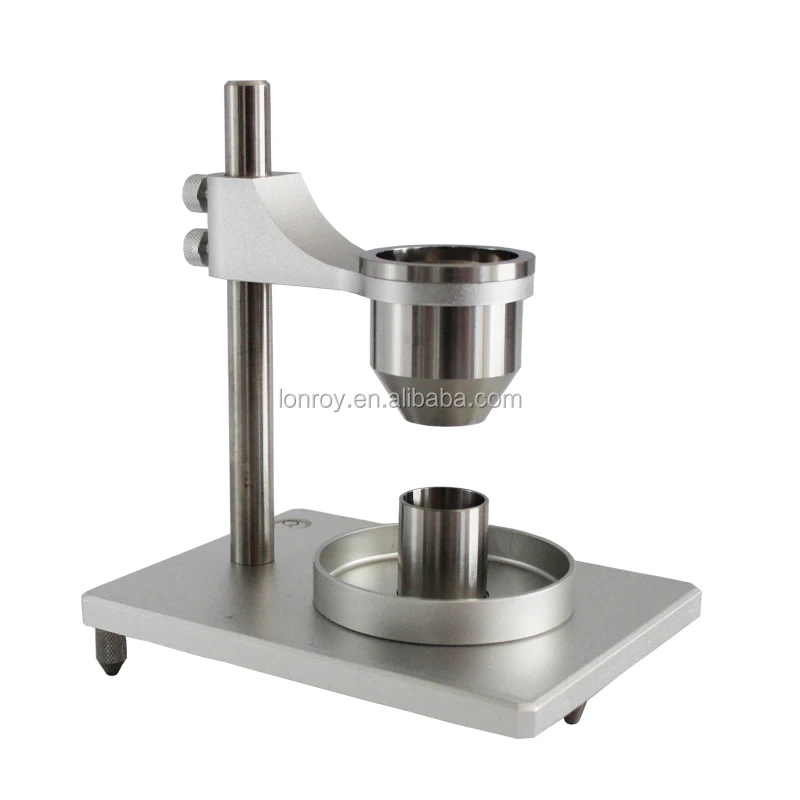

Device Structure
1. Funnel: Standard funnel hole diameter D has two specifications, one is 2.5mm in diameter;One is 5.0mm in diameter
Note: Funnel aperture 2.5mm test powder flow velocity funnel aperture 5.0mm test powder loose packing density
2. Funnel Angle: 60 degrees
3. Cylindrical cup: volume 25± 0.05cm3, internal meridian 31±1mm.
4. Fabrication of cups and funnels: The cups and funnels shall be made of non-magnetic corrosion-resistant metal with walls of sufficient thickness and hardness to prevent deformation and excessive wear, usually brass or stainless steel.The inner surface of the funnel and cup should be carefully polished.
5. Bracket and base: Bracket is used for fixing funnel.The base must be horizontal and firm, free from vibration, and used for mounting bracket and cup.The distance between the bottom of the funnel hole and the top of the cup is 25mm, which can be adjusted by positioning block. The funnel and the cup must be concentric.
5. Balance (supplied by the user) : There should be enough measuring range to accurately weigh the sample to 0.01g.

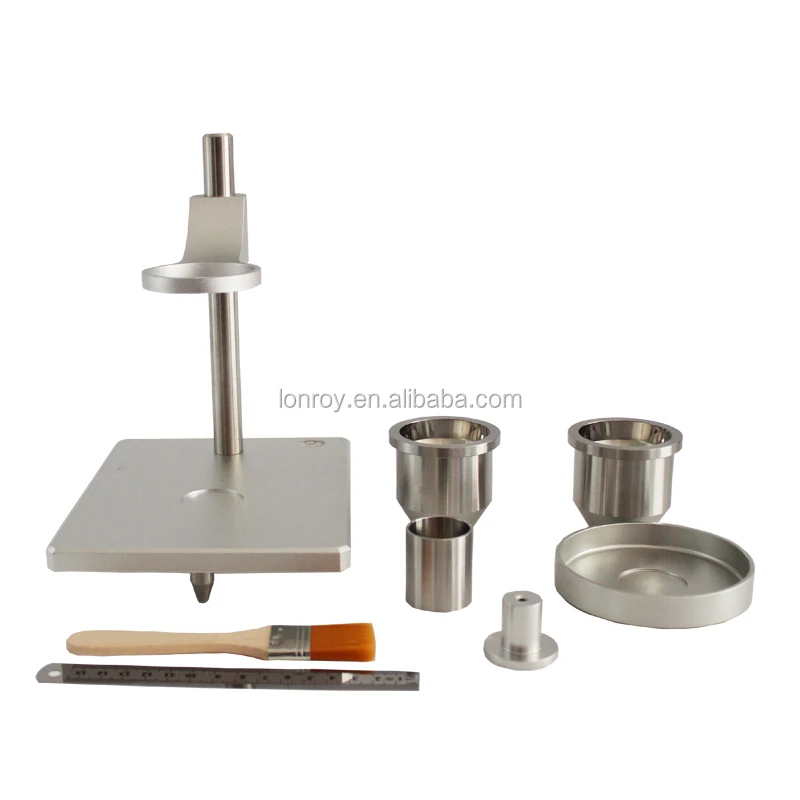

Standard accessories: Mounting bracket funnel (according to actual situation) 25ml measuring cup overflow plate/receiver height positioning block
