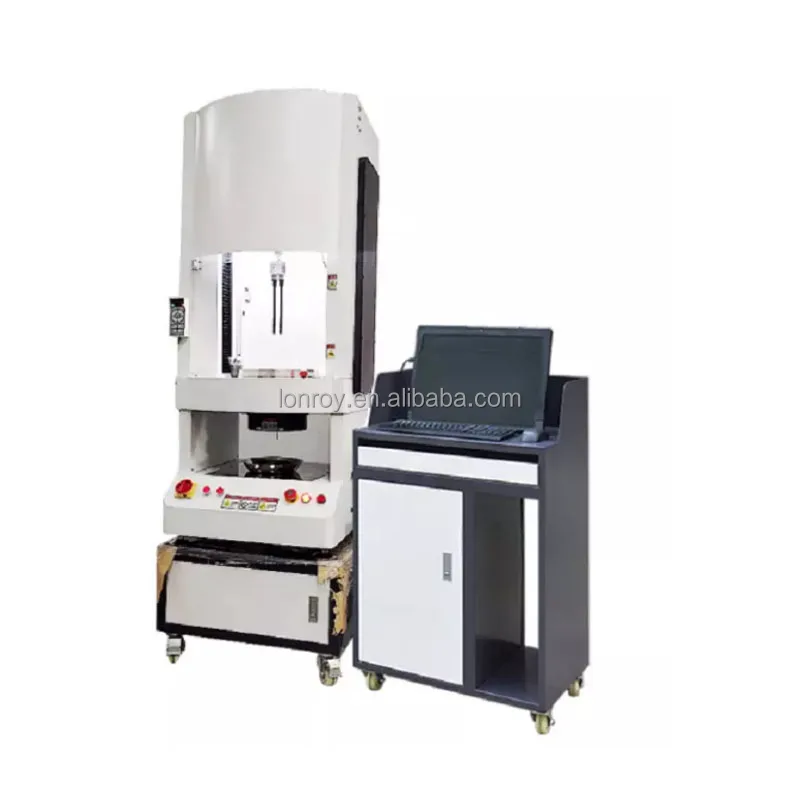

Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
Premium Products
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
1
2
3
4
5
6
Brand Name :LONROY
Place of Origin :Guangdong, China
MOQ :1
Power supply :1,220V,50/60Hz,8A
Voltage :220 V
Weight :250 kg
Volume :60*66*168 cm
Testing speed :0.0005-500 mm/min
Accuracy :< 0.25%
Maximum test capacity :10kN[adjustable], 20kN[adjustable]
Dynamic velocity ratio :1:40,000
Maximum test temperature :400°C
Temperature control :PID control, resolution 0.1°C, error <±0.5°C
Cylinder diameter :12 mm (15 mm, 9.5 mm option)
Cylinder length :200 mm (Other lengths can be customized)
Pressure sensor capacity :700 bar (700 bar,1400 bar optional), 1000 bar (1400 bar optional)
Pressure sensor material :Stainless steel, corrosion resistance, high temperature resistance
Capillary material :Tungsten carbide [alloy material nickel-chromium metal]
Contact Now
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
1. Product Introduction
The LR-1048 series includes the most comprehensive and technologically advanced capillary rheometer capable of measuring the rheological properties of polymer material samples at a variety of shear rates and test conditions. The following data are obtained:
Volume flow rate, Rap- apparent shear stress, polymer viscosity, Nap- polymer apparent viscosity, Sa- room temperature expansion ratio and so on.
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
2.Features
This instrument adopts advanced high temperature and pressure sensors, the mechanical transmission part mainly adopts imported precision double ball screw drive, to ensure the machine mechanical high rigid frame structure, so that the load efficiency and measurement accuracy of deformation has been greatly improved.
Transmission control system: imported high-precision servo system control, with high response frequency, high transmission efficiency, smooth transmission, high acquisition frequency, better precision.
Heating part: The rare alloy material nickel-chromium metal die-casting, with a long time high temperature state of burning is the main characteristics, excellent temperature stability.
Temperature control part: Adopt advanced imported temperature control module, with fast output response, accurate PID parameter automatic adjustment function, to ensure the stability of the temperature.
Acquisition part: equipped with high-precision force sensor, high data sampling frequency, high acquisition accuracy.
Capillary Rheometer for Thermoplastic Material Rheological Properties Test Viscosity Meter
3.Product Parameter
Model
LR-1048-10
LR-1048-20
Maximum test capacity
10kN[adjustable]
20kN[adjustable]
Testing speed
0.0005-500 mm/min
Dynamic velocity ratio
1:40,000
Maximum test temperature
400°C
Temperature control
PID control, resolution 0.1°C, error <±O.5°C
Cylinder options
Single cylinder
Cylinder diameter
12 mm (15 mm, 9.5 mm option)
The length of the cylinder
200 mm (Other lengths can be customized)
The test chamber
Electronic heating test chamber, extractor cylinder
Pressure sensor
Capacity
700 bar (700 bar,1400 bar optional)
1000 bar (1400 bar optional)
Accuracy
< 0.25%
Material
Stainless steel, corrosion resistance, high temperature resistance
Capillary
Material
Tungsten carbide [alloy material nickel-chromium metal]
Size
5/0.5-L= 5 mm , D = 0.5 mm ;10/1-L= 10 mm , D = 1 mm;
(3) 20/1-L= 20 mm ,D= 1 mm; (4)30/1-L= 30 mm , D= 1 mm ;
(5) 20/2-L= 20 mm , D= 2 mm; [both acceptable]
Test mode
"Constant speed" and "constant pressure" test
Control software
CREE.1048.63 versions Capillary rheology exclusive system measurement and control system.
Volume(w×d×h)
60×66×168 cm
Power supply
1,220V,50/60Hz,8A(Depending on country or designation)
Weight
250 kg
Cleaning systems
Adopt the latest design pneumatic motor cleaning device
