HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
Premium Products
HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
1
2
3
4
5
6
Model Number :HAAKE
Brand Name :HAAKE
Place of Origin :Guangdong, China
MOQ :1
Viscosity Range :0.5 - 100000 mPas
Temperature Range :-1°C to +26°C
Repeatability :< 0.5 %
Analogue Accuracy :< 1 %
Material :Borosilicate glass, Nickel-iron alloys
Operating Temperature :0℃~50℃
Rotor Speed :6 RPM
Power Type :Electronic
Measurement Principle :Falling ball timing
Drop Tube Material :Borosilicate glass

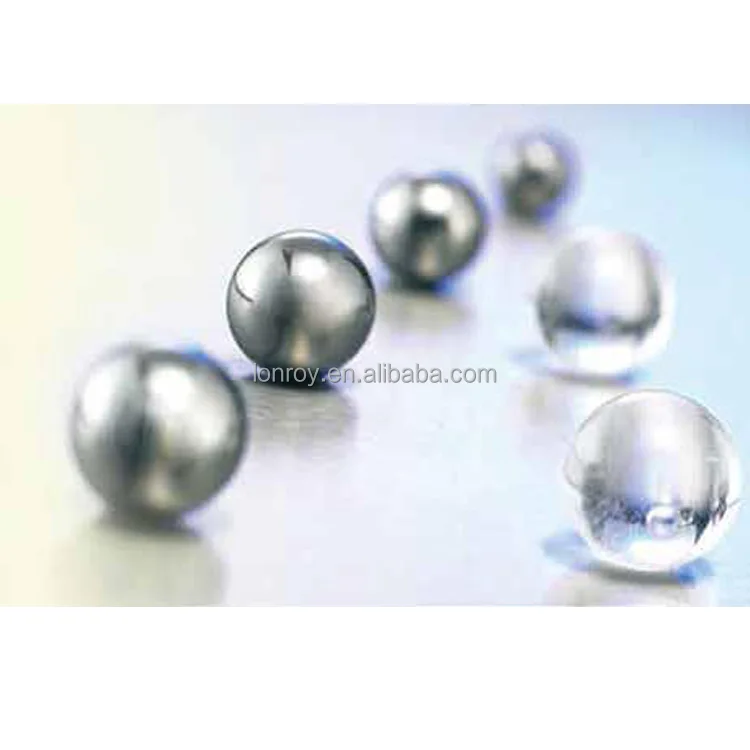

Ball Material :Borosilicate glass, Nickel-iron alloys
Optional Accessories :Stopwatch, G balls, PT100 sensor
Measurement Units :mPas (dynamic viscosity)
Compliance Standards :DIN 53015, ISO120587
Repeatability Test :±1%
Contact Now
HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
Product overview
Uses:

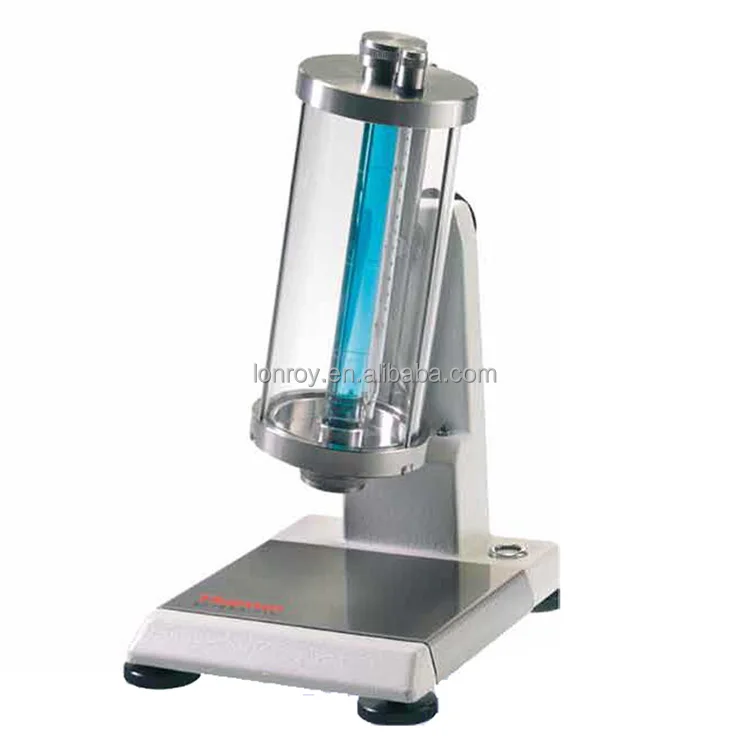

The HAAKE falling ball viscometer C is an instrument for quasi-accurate measurement of the viscosity of transparent Newtonian fluids and gases. It meets the German DIN 53015 and ISO120587 standards, can be used as an official reference instrument. With the support of the accurate temperature control system of the circulator, its measurement accuracy is among the best among all viscometers.
HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
Use Industry
Chemical industry (polymer solutions, solvents, inks)
Pharmaceutical industry (raw material, glycerin)
Food industry (gels, sugar solutions)
Mineral oil industry (oil, liquid carbon hydration compound)
Principle of measurement:
The roll of the ball in the sample liquid was timed in an inclined cylindrical measuring tube. The viscosity of the sample is related to the time it takes the ball to travel a certain distance. Turn the measuring tube over to make another measurement. Test results are given in mPas units of dynamic viscosity as specified in the international standard.
HAAKE Falling Ball Viscometer Comply With DIN 53015 ISO120587
