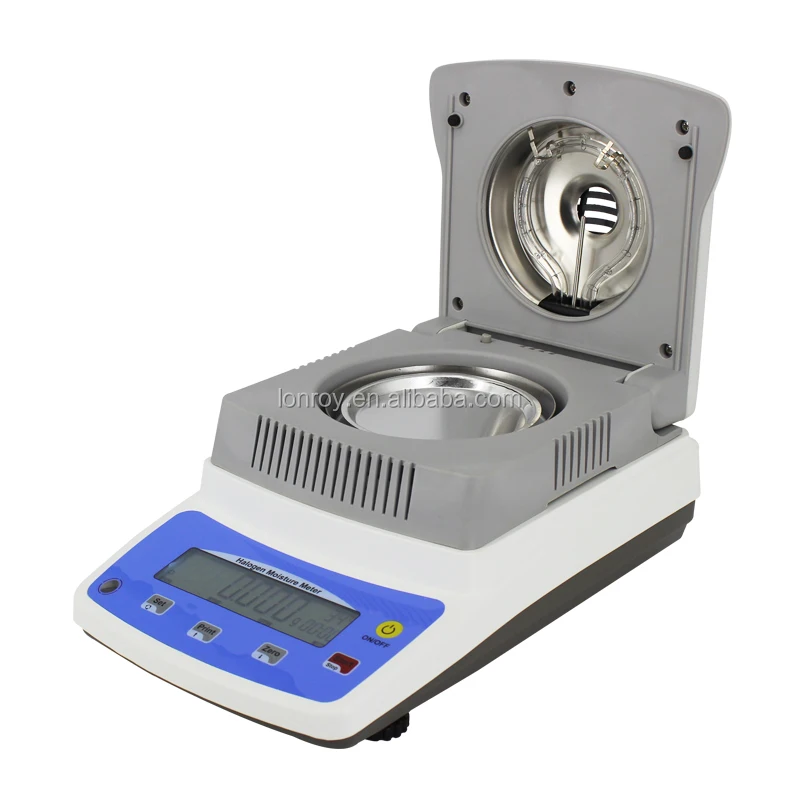

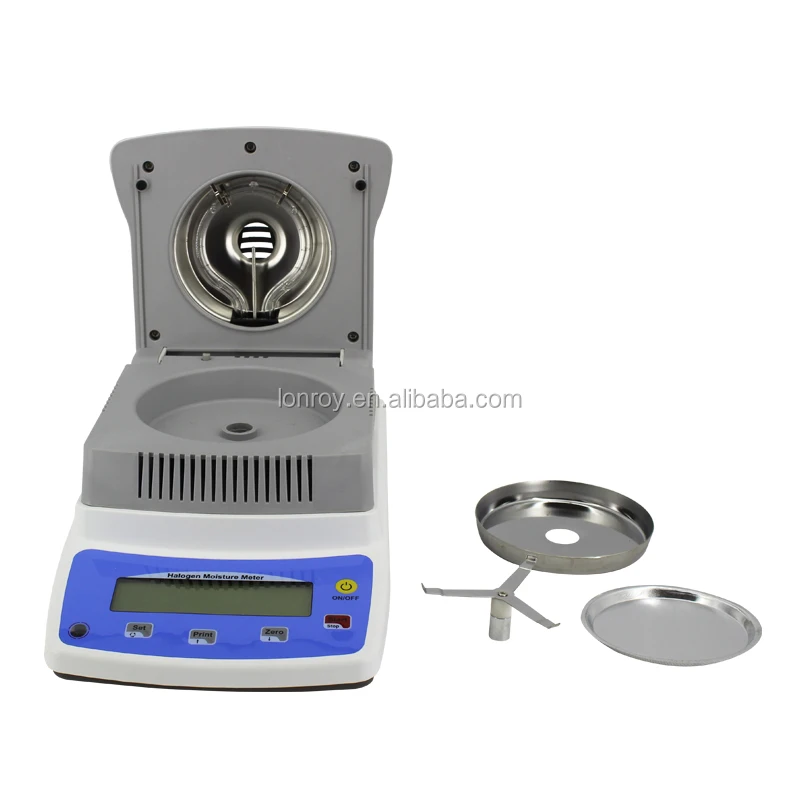

Professional Moisture Analyser Testing Machine/Meter for Grain and Food Moisture Test

Professional moisture analyser testing machine/Meter for Grain and Food Moisture Test

Product introduction

Halogen moisture meter is used in various industries such as medicine, plastic, chemical, food, food, feed, calcium and magnesium, quality supervision and inspection, and other production and experimental process, with good reproducibility of moisture determination results;Clear key and moisture measurement information display, to achieve intuitive and simple instrument operation;Innovative pre-stored water determination method databases for 16 different samples make the development of test methods fast and easy

Professional moisture analyser testing machine/Meter for Grain and Food Moisture Test

Working principle:

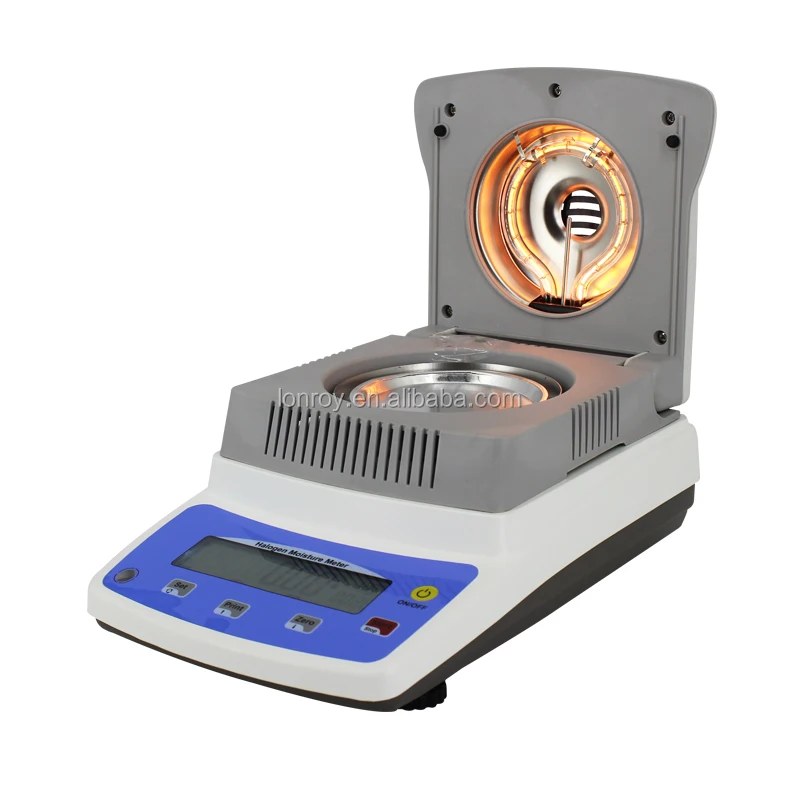

The annular halogen lamp ensures uniform heating of the sample, easy operation and accurate measurement.When measuring the weight of the sample, the moisture tester USES the halogen heating method in the annular tube to dry the sample quickly. During the drying process, the moisture tester continuously measures and immediately displays the moisture content of the sample lost. After the drying procedure is completed, the final moisture content value is locked and displayed.Compared with the international oven heating method, halogen heating can dry the sample evenly and quickly at high temperature, and the sample surface is not easy to be damaged. The detection results of the halogen heating method have good consistency with the national standard oven method and are substitutable, and the detection efficiency is much higher than that of the oven method.Intelligent operation, the general sample only takes a few minutes to complete the determination.The equipment operation is simple, accurate test, show part adopts LCD display - make the screen more clear and bright, clear value, it can display the moisture value respectively, samples of initial value and final value, determination of time, temperature, initial and final value and other data, and with the computer, printer connectivity, print data after it is in conformity with the GLP standard output.

Professional moisture analyser testing machine/Meter for Grain and Food Moisture Test

Technical parameters:

Type XFY-120a XFFY-50a xFFY-60a

The maximum weight value is 120g, 120g, 120g

The index value was 0.001g 0.005g 0.01g

Readability 0.01% 0.01% 0.1%

The temperature of the heating source halogen lamp was set at room temperature -180 ℃

Data saving 16 groups weight calibration 100g

Dish size 110 (mm)

Dimensions (D*W*H) 330*205*165(mm)

Package size (D*W*H) 410*315*335 (mm)

Net weight 3.2kg gross weight 4.6kg

Five measurement programs

Standard mode: Automatically complete measurement by setting high, medium and low measurement accuracy.

Automatic mode: Automatic termination of measurement when the rate of change of water cut is less than a set rate.

Rapid mode: In order to achieve rapid measurement, 180 ° C heating was used in the first 3 minutes after startup, and then the measurement was completed according to the automatic setting.

Timing mode: Measure by setting duration.

Manual mode: Operate the measurement process by pressing the start and stop keys.

Three drying procedures

Standard drying: Heat directly to the set temperature after starting.

Gentle and dry: Gradually rise to the set temperature after a preset time.

Rapid drying: Rapid heating at 180 ° C for 3 minutes and then continuous heating according to the set drying temperature.

Test steps:
