Temperature probe :0-100°C, 0.1°C accuracy (optional)
Contact Now

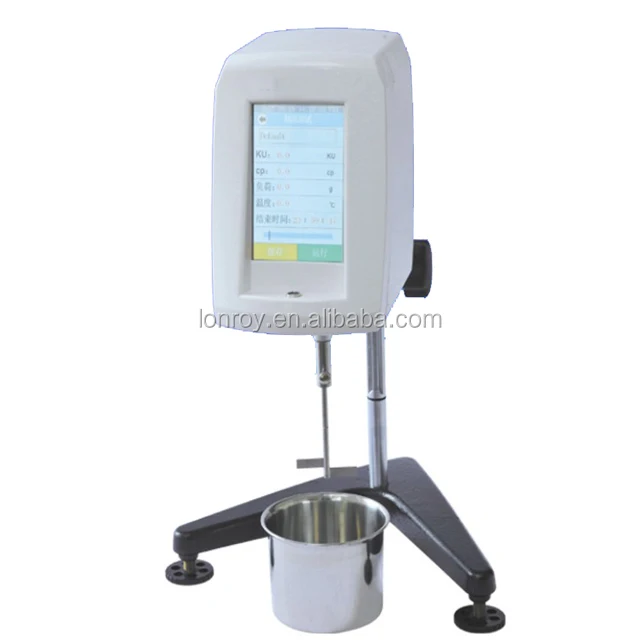

SNB Series Digital Rotational Viscosity Meter
The apparent viscosity of absolute viscosity or non Newton type liquid SNB series digital viscometer can be measured. The Newton type liquid viscometer data processing software can be summarized for rheological properties of non Newton liquid.
Widely used in grease, paint, paint, textile, food, slurry, medicine, cosmetics and other adhesives, fluid, semi fluid production industry and scientific research units.
SNB Series Digital Rotational Viscosity Meter For Paint And Coating
Main features: 1. measurement data direct LCD screen display does not require two calculations
2., using the latest international microcomputer drive technology, import stepper motor, accurate speed, smooth and reliable
3., the use of advanced switching power supply technology, voltage and frequency range wide, power fluctuations will not affect measurement accuracy
The 4. level display device is very convenient on the front of the viscometer
5. all ranges, the display accuracy of viscosity value is accurate to two decimal places, that is, 0.01mPa.S.
6., with the function of timing measurement, it is very useful for detecting non Newtonian liquid
7. using small sample adapters, the amount of sample required for each measurement is very small, 18ml.
8., automatic scanning function, the instrument can automatically recommend the best combination of rotor and speed
9. automatically display the maximum range of viscosity that the selected combination can measure
10., with a print interface, you can directly connect to play micro printing machine, print a variety of data
11. optional data processing software, can record real-time viscosity with time, speed or rotor (shear rate), temperature changes vary, which provides a good method to understand the viscosity and rheological properties of non Newtonian liquids.
SNB Series Digital Rotational Viscosity Meter
Detailed technical parameters:
Instrument model
SNB-1
SNB-2
SNB-1A
display mode
liquid-crystal display
speed (r/min)
0.3/0.6/1.5
/3/6/12/30/60
0.1/0.3/0.6/
1.5/3/6/12/30/60
0.5 / 1 / 2 /
5 / 10 / 20 / 50
rotor
1#,2#,3#,4#
The 0# rotor is optional, for measuring ultra low viscosity below 15
21,27,28,29#
measuring range
1~2,000,000
1~6,000,000
10-200000
Sample size required for each measurement
250 – 400ml
18ml
Viscosity display accuracy
0.01mPa.S
measurement error
±3% (Newtonian liquid)
repetitive error
±1.5% (Newtonian liquid)
sample amount
18ml (Each measurement required)
Timing measurement function
standard configuration
temperature measurement
standard configuration
Measurement range display
Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value
Constant temperature component
Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.)
data output interface
standard configuration
Data processing software
option
working power supply
110V / 60Hz,220V / 50Hz
outline dimension
300 × 300 × 450(mm)

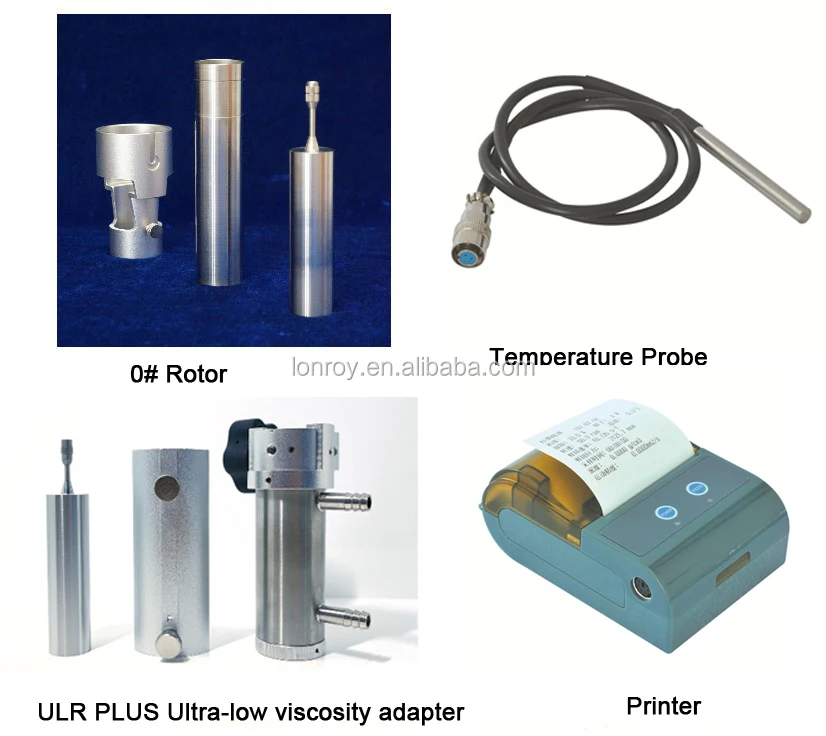

Option:
1. ultra low viscosity adapter (0# rotor)
A set of three pieces (rotor, sample bucket,
connecting frame) Used to measure ultra-low
viscosity samples below 15mPa.S
The amount of sample required for each
measurement is 18-20ml
The accuracy of measurement is 0.1mPa.S
2. Temperature probe (temperature sensor)
High precision temperature measuring chip with A/D conversion
